TROJAN UV
Infralight supplies and manufactures a complete range of components for Trojan UV systems worldwide including lamps, quartz sleeves and thimbles, ballasts. Infralight is a major supplier of low pressure and amalgam UVC lamps in both the 185 and 254nm wavelengths. Infralight’s products are used in the disinfection of municipal wastewater, industrial process water and drinking water. Our Australia based sales, technical support and manufacturing organisation offers customers straightforward access to highest quality products and exceptional service.

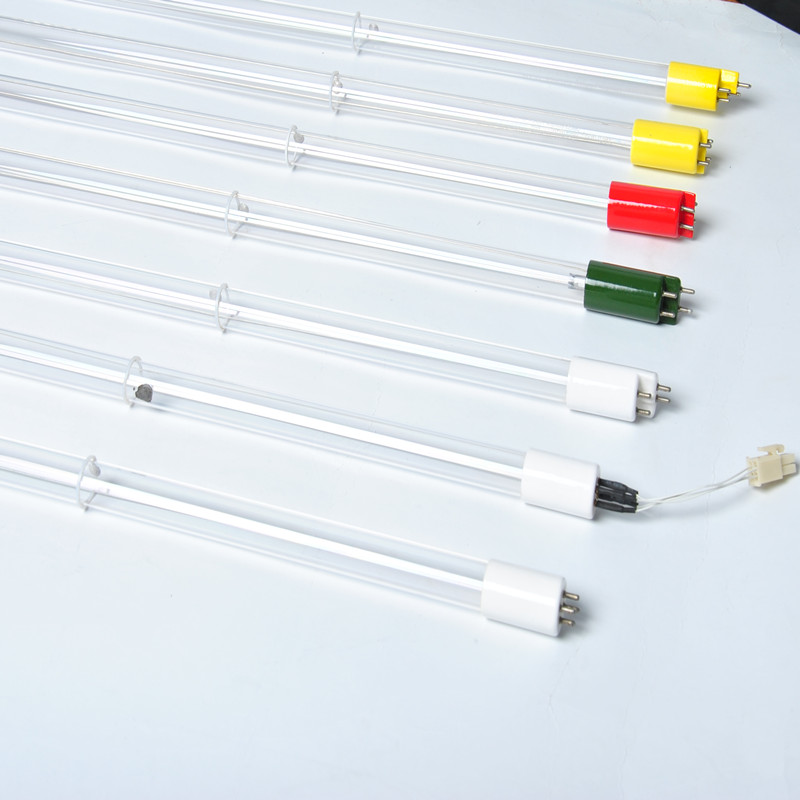

TROJAN UV-REPLACEMENT UV LAMPS & SLEEVES

302509
Power 260W
Length 1564mm

794447-OSM
Power 260W
Length 1564mm

793923
Power 170W
Length 1002mm

794108
Power : 120W
Length: 1002mm
Length: 1002mm

794109
Power 300WW
Length: 1570mm

794113
Power: 120W
Length: 672mm
Length: 672mm

441165-024
Power 3200W
Length: 610mm

441165-028
Power: 3200W
Length: 692mm

794447-OYW
Power: 300
Length: 1554mm

794447 ORD
Power 300W
Length: 1560mm
Length: 1560mm

302317
Power 130W
Length: 1554mm

302418
Power: 75W
Length: 1554mm
Length: 1554mm
Trojan P/N | Part # | Watts | Lamp Length | Quartz Replacement |
441165-024 | H004 | 3200 | 645mm | QZ214 |
441169-028 | H005 | 3200 | 725mm | QZ220 |
600080 | 1993 | 75 | 1554mm | QZ387 |
302418 | 1886 | 75 | 1554mm | QZ203 |
302317 | 2678 | 130 | 1554mm | QZ203 |
794447-0SM | 2940 | 290 | 1562mm | QZ126 |
794109 | 3029 | 300 | 1570mm | QZ126 |
794447-0RD | 3228 | 300 | 1570mm | QZ126 |
794447-0YW | 3360 | 300 | 1570mm | QZ126 |
793923 | 2932 | 170 | 1002mm | QZ131 |
794108 | 3319 | 120 | 1002mm | QZ131 |
794113 | 2933 | 120 | 672mm | QZ132 |
